Key Takeaways
- Splicing and tapping in breaker panels are permissible within NEC guidelines.
- Reidentifying white wires for hot wire use is allowed with proper methods.
- Using 20 amp receptacles on a 15 amp circuit is not compliant with NEC standards.
Clarifying Electrical Code Myths
Myth 1: Splices or Taps in Breaker Panels
A common belief is that splices or taps cannot be made in breaker panels. Article 312 of the NEC permits splicing or tapping in the wiring space of enclosures, provided certain conditions are met. Ensure the number of conductors in any cross section does not exceed 40%, and that the total area of all elements at that section does not surpass 75%. When these conditions are adhered to, making splices in breaker panels is allowed.
Myth 2: Aluminum Wires and Antioxidant Paste
There's a misconception that antioxidant paste is necessary for aluminum wires in electrical panels. Historically, this paste was used to prevent oxidation. However, with Article 310.3(B) requiring AA-8000 series electrical-grade aluminum alloy since the late '80s, the paste is no longer mandatory. Though still usable, it's not a code requirement for aluminum wires made with this specific alloy.

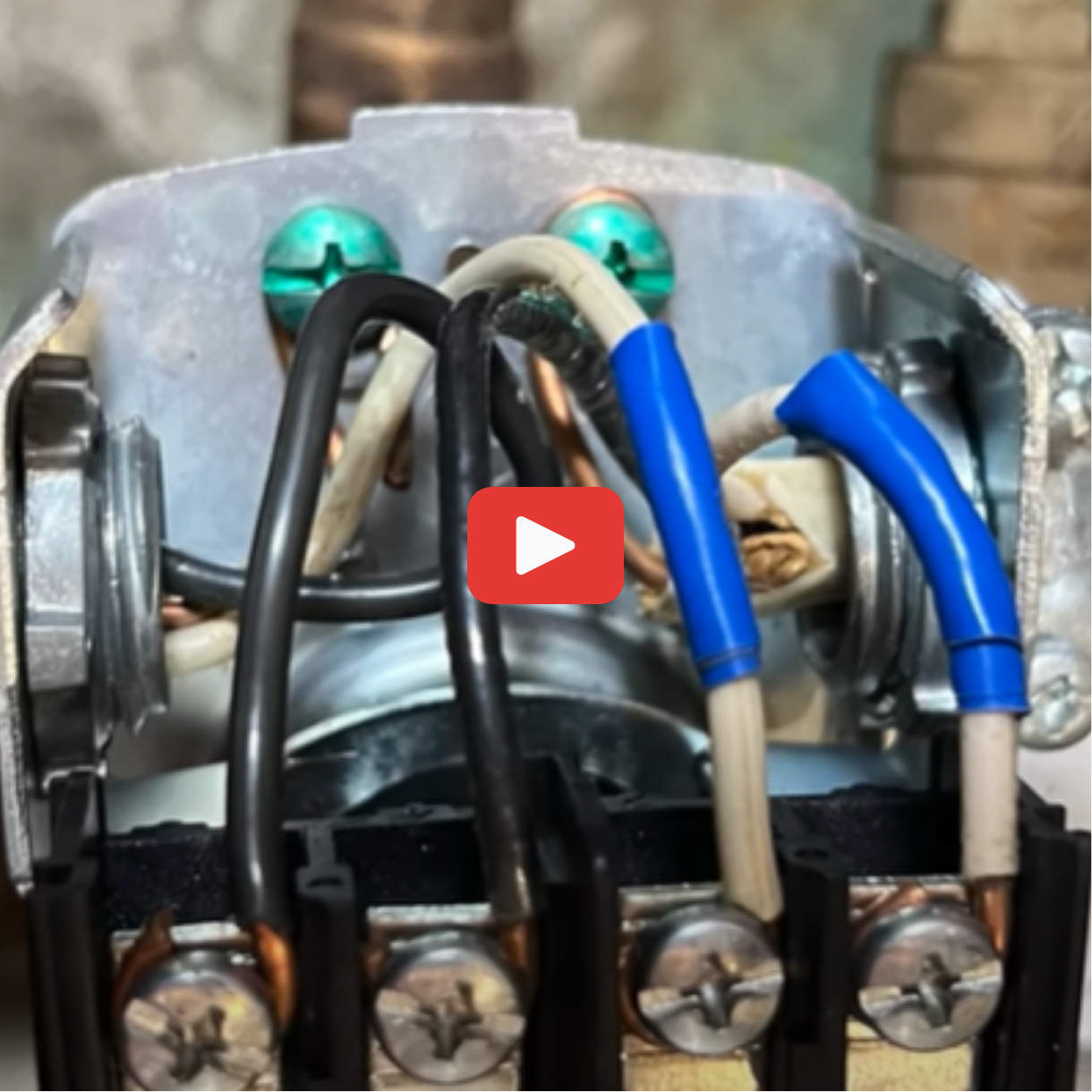

Myth 3: Re-Identifying White Wires as Hot Conductors
It's often thought that white wires cannot be re-identified as hot conductors. NEC Article 200.7(C) does allow for re-identification of a white wire for use as an ungrounded hot wire, especially in certain setups like switch loops or 240-volt circuits. To comply with the code, the white wire must be permanently marked with any color other than white, gray, or green using an appropriate method. This re-identification must be visible and accessible at every termination point.
Understanding Cable Support and Box Fill Regulations
Myth 4: Single Cable Entry Per Box Opening
It's a common belief that it's a code violation to insert more than one Romex or NM cable into a single box opening. For single gang, non-metallic boxes, which are frequently used in residential wiring, article 314.17(B)(2) states that multiple cable entries can be allowed in a single cable knockout opening. These types of boxes do not have clamps, and the cable support requirements have been adjusted from 12 inches to 8 inches due to this specific design feature.
For other box types like multi-gang, light, and old work boxes that include a cable clamp, you should refer to the manufacturer's instructions to ensure compliance. Many of these will only permit one cable per opening. It's crucial to consult these guidelines to avoid any potential code violations.
Manufacturers and Equipment Specs
The National Electrical Code (NEC) highlights the importance of adhering to manufacturer specifications with article 110.3(B), stating that equipment must be installed and used in accordance with any instructions included in their listing or labeling. For boxes with integrated clamps, following the manufacturer's instructions ensures that installations meet regulatory standards.
This attention to detail guarantees that installations are safe and compliant with both the NEC and manufacturer requirements, providing clarity on what can sometimes be a confusing aspect of electrical installations.
Analyzing MC Cable Termination Requirements
Myth 5: Anti-Short Bushings with MC Cables
You might believe that red insulated anti-short bushings are necessary for all type MC cable terminations. It’s a common misconception. The truth is that Type MC cables, governed by Article 330 of the NEC, do not require an anti-short bushing. Instead, Type AC cables, covered by Article 320, mandate these bushings, as stated in section 320.40.
To emphasize the difference, fittings for MC cable must be listed and identified for their specific use. Such fittings include a smooth, rounded end stop which protects the wires adequately without needing an anti-short bushing. Rather than follow outdated practices, refer to the NEC for current standards.
In some cases, MC cable manufacturers include anti-short bushings due to historical practices associated with Type AC cables. This might cause confusion, but it's important to note that the NEC does not require these bushings for MC cables. Using a bushing with an MC cable fitting not designed for it may breach NEC compliance, specifically article 330.6.
Remember, it’s crucial to follow the design specifications of your cable fittings to ensure the protection and integrity of the electrical system.
Explaining Circuit Breaker and Receptacle Ratings
Myth 6: 20 Amp Receptacles on 15 Amp Circuits
When it comes to receptacles and circuit ratings, it's commonly misunderstood that you can install 20 amp receptacles on a 15 amp circuit because the receptacle's rating is larger, assuming it's adequately protected. According to Article 210.21(B)(3) and Table 210.21(B)(3) of the National Electrical Code (NEC), 15 amp circuits must use receptacles rated for 15 amps.
A 15 amp circuit breaker is designed to trip if current exceeds 15 amps, effectively preventing overheating and potential hazards. If a 20 amp receptacle is incorrectly installed on a 15 amp circuit, it might lead users to plug in higher amperage devices, risking frequent breaker tripping or more severe electrical failures. This setup does not align with NEC standards, emphasizing safety and correct usage.
