Key Takeaways
- The 2023 code update changes how light switches are wired.
- Neutral wires are now required in switch boxes.
- Learn compliant methods for single pole and three-way switches.
Overview of Light Switch Wiring
When working with light switch wiring, there are various methods to consider. For single pole switches, two common wiring techniques include the switch loop and the feed through method. The switch loop traditionally used a two-wire cable, but it requires reidentifying the white wire as hot with electrical tape. This method sends power from the light fixture to the switch and back, keeping the neutral at the light fixture.
In contrast, the feed through method routes the feed cable directly to the switch box, allowing the neutral wire to be maintained at the switch. This approach adheres to the current code requirements, which mandate a neutral wire at the switch due to the rise of electronic switches needing constant power.
Regarding three-way switches, there are four wiring methods: Chicago 3-way (now outdated), California 3-way (regionally variable), standard method, and dead end three-way. In the standard method, you'll connect your power line to the first switch, and the switch leg to the light from the second switch. A three-conductor cable is utilized between the two switches for traveler connections, with a neutral wire present but not connected to the switches.
To meet recent code changes, ensure a neutral wire is present in all switch boxes, whether for single pole or three-way switches, supporting both traditional lighting and newer smart devices.
Single Pole Switches
The Switch Loop Method
In the switch loop method, your feed cable runs to the light fixture box, and a two-wire loop is sent down to the switch. Typically, this loop is created using a two-wire cable like 14/2 Romex. Historically, both the black and white wires are connected to the light switch, necessitating the white wire to be re-identified as a hot wire with electrical tape. The neutral wire stays at the light fixture box. While commonly used, this method is no longer code compliant for new installations.
The Feed Through Method
The feed through method involves directing the feed cable to the switch box first and then running another two-wire cable up to the light box. At the switch box, the white neutral wires are joined, allowing the neutral to extend to the light box. The hot and switch leg wires connect to the switch, and the ground wires are also connected. This method complies with current wiring codes for single pole switches.
2011 NEC Code Requirement for Neutral Wires
In 2011, the NEC code was updated to mandate a neutral wire at light switches under Article 404.2. The update resulted from the rise in smart switches and lighting controls needing a neutral wire for functionality. Previously, switches were installed without a neutral wire under certain exceptions, such as when additional cable installation was feasible without removing finish materials.
2023 NEC Update and Code Compliance
The 2023 update to the NEC removed the exception that allowed installations without a neutral wire when future fishing was possible. Now, a neutral wire is obligatory at switch boxes, even in the simplest switch loop configurations. Using a three-wire cable is the solution, providing necessary connections to accommodate modern switches and controls.
Three-Way and Four-Way Switches
Neutral Wire Requirement for Switch Boxes
For three-way and four-way switch boxes, a neutral wire is necessary. This requirement addresses the increasing use of smart switches, which need a neutral wire for proper operation. The removal of exception number two in the 2023 NEC code reinforces this necessity, ensuring that modern lighting controls are accommodated.
Wiring Methods for Three-Way Switches
There are four primary methods for wiring three-way switches: the Chicago 3-way, California 3-way, standard method, and dead end three-way. Each method varies in terms of legality and acceptance. The standard method is the most common, involving clear steps for ensuring proper connections at each switch and the light fixture.

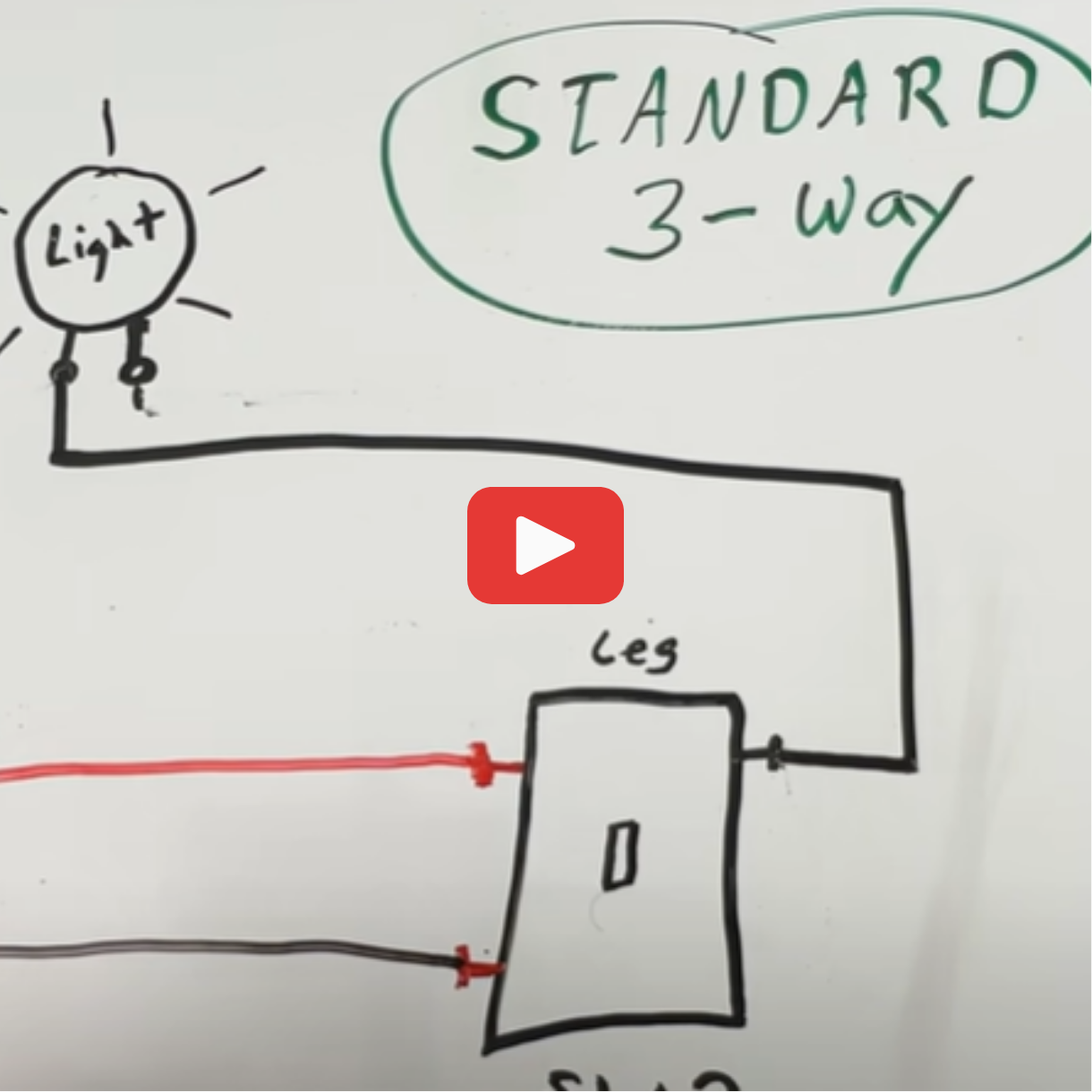

The Standard Wiring Method
To wire using the standard method, begin by running a 12/2 cable from your power source to the first three-way switch. Connect the black wire to the common screw, then run another 12/2 from the light fixture to the second switch, again connecting the black wire to the common screw. Use a 12/3 cable for the travelers between the switches, ensuring the red and black wires connect to the traveler screws on each side. The neutral wire runs through both switch boxes but does not connect to the switches. This setup allows for efficient control of lighting from multiple points.
Explanation of Applicable Wiring Codes
In the latest code update, running a two-wire switch loop without a neutral wire at the switch box is no longer code compliant for new installations. This change addresses the growing need for a neutral wire due to the emergence of smart switches and advanced lighting controls. You'll need to ensure there's a neutral wire at your switch boxes to accommodate these modern devices, as outlined in article 404.2 of the National Electrical Code (NEC).
The Switch Loop Method:
Traditionally, a two-wire cable like 14/2 ROMEX was used, with the white wire re-identified as a hot wire using electrical tape. This method ran power from the feed at the light box through the switch and back to the light box. Despite this, the absence of a neutral wire in the switch box has now become a compliance issue, as contemporary devices often require a neutral for operation.
The Feed Through Method:
This method involves running the feed cable to the switch box first and then taking another two-wire cable to the light box. By connecting the neutral wires in the switch box, you ensure that the neutral reaches the light box, satisfying the updated code requirements. This approach accommodates the modern demand for neutral wires in switch boxes.
2023 Code Update:
Exception number two, which permitted installations without a neutral wire if future wire fishing was feasible, has been removed from the new 2023 NEC update. A neutral wire is now mandatory at switch boxes to avoid complications with new technology.
To legally implement switch loops, using a three-wire cable is necessary. This ensures compliance by running a neutral wire to the switch box, even if the neutral isn't immediately utilized. By following these updated wiring methods, you'll meet the necessary standards and be ready for integrating advanced lighting controls.
Working With Switch Loops Under the New Code
When using switch loops with the updated 2023 code, ensuring compliance requires some important changes. In the past, two-wire cables, such as 142 Romex, were often used to run power from the light fixture box to the switch. This technique involved reidentifying the white wire with electrical tape to function as a hot wire, but such methods have now become non-compliant due to the absence of a neutral wire at the switch box.
To adapt to the 2023 code, you need to include a neutral in the switch box. This means running a three-wire cable from the light fixture to the switch, instead of the older two-wire loop. Utilize the black wire to carry power from the light box to the switch, while the red wire will return from the switch to the light fixture. The neutral wire must also be included in this setup, ensuring it is available for any modern devices that require it at the switch box.
Even though the neutral wire may not be directly connected to the switch in some installations, it should be capped if not in use or connected if required by devices like smart switches. This updated method ensures that your wiring meets the new standards and supports advanced lighting controls. Always remember to connect the ground wires appropriately for safety and compliance.
