How To Bend Offsets On EMT Easy

Brendan Lamothe

Key Takeaways

  • Perfecting offset bends involves precise measurement and marking.
  • Using a cosine chart is essential for accurate bend calculations.
  • Avoid excessive bends to ensure smooth wire pulling through the conduit.

Overview of Offset Bending

Importance of Precise Measurements

When creating an offset bend, measuring is crucial. The process requires using a tape measure to determine the precise height you need to clear an obstruction. For instance, a common practice involves recognizing the preferred angle for bending, often a 30-degree angle due to its simplicity and effectiveness. The cosine chart plays an essential role here, as it helps determine the multiplier necessary to achieve the desired offset. For a 30-degree bend, you'd multiply the obstruction height by 2. So, for a 4-inch obstruction, 4 times 2 gives you an 8-inch offset.

Explanation of an Obstruction

An obstruction in the context of offset bending could be anything that interrupts a straight path, requiring the bending of conduit to bypass it effectively. In practical situations, obstructions can vary, thus needing different measurements and bending degrees. You might encounter scenarios where a 45-degree or 60-degree bend is required, although a 30-degree bend is the go-to for many situations. The goal is to reposition the bend to ensure the conduit rises above the obstruction without any gaps underneath, aligning perfectly to the desired height or clearance.

Measuring for the Offset

Using a Tape Measure

Start by taking your tape measure to identify the height of the obstruction you need to overcome. In this case, measure the point at which your table rises, indicating an obstruction of about 4 inches. Careful measurements help in determining the precise bend angles needed for successful conduit navigation. Ensure your tape measure is accurate for consistent results.

Determining the Height of the Obstruction

To determine the correct offset height, first identify the height of the obstruction with your tape measure. Multiply this height by 2 when planning for a 30-degree bend, which is the standard go-to angle. Therefore, for a 4-inch obstacle, calculate an offset requiring an 8-inch adjustment. Use a pencil or Sharpie for marking positions. This precision ensures your conduit navigates the obstruction without errors, always aim for a neat and accurate alignment.

Understanding the Cosine Chart

Applying the Cosine Chart to Bending

When overcoming an obstruction such as the uneven surface of a table, utilizing the cosine chart simplifies the process of bending conduit. You should start by measuring the obstruction—in this case, it measures around 4 inches. To effectively get over this height, performing a 30-degree bend is a practical choice.

Marking the conduit accurately is critical. Initially mark a spot 3 inches back from where you want the bend to start. This is a suggested practice to ensure accuracy and ease of bending. The cosine chart indicates that for a 30-degree bend, you multiply the obstruction height by 2. This means a 4-inch obstruction requires an 8-inch distance on your conduit.

With the mark lined up at the arrow on your bender, bend the conduit to 30 degrees. It's important to ensure the bend is precise, aligning with the marks set earlier. Flip the conduit and check for any irregularities, like a dogleg. A symmetric 180-degree alignment is necessary for a perfect bend. After bending, you should be able to fit the conduit snugly over the obstruction, confirming the measurements and calculations were correct.

Calculating Multiplier for a 30-Degree Bend

The multiplier for a 30-degree bend is 2. This is a straightforward calculation from the cosine chart, aiding in determining the necessary offset distance. Multiply the height of your obstruction by this multiplier to determine how much length on the conduit is required to cover the obstruction.

In practice, a 4-inch obstruction needs an 8-inch span on your conduit for the bend to be effective. This calculation ensures the conduit will clear the obstruction while maintaining structural integrity and usability. Always mark precisely and use the calculated measurement to guide your bending process, ensuring a smooth setup every time.

Marking the Conduit for Bending

Setting the Offset Starting Point

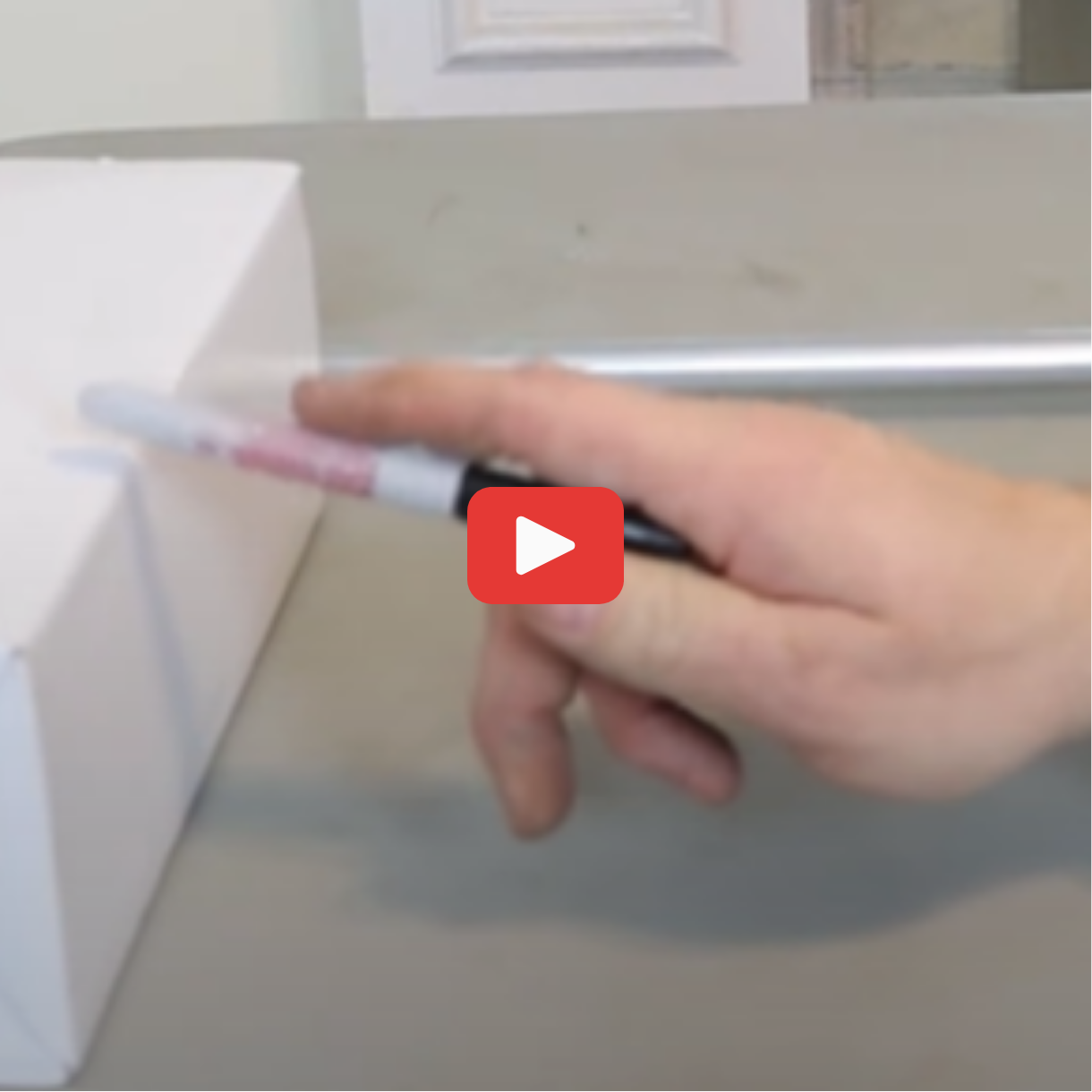

To begin, use your tape measure to determine the height of the obstruction, which in this case is 4 inches. Since the go-to angle for bending is typically 30 degrees, you need to multiply the obstruction's height by 2, resulting in 8 inches. Start by coming back 3 inches and making your first mark there. This mark indicates where you’ll place the arrow for your initial bend.

Marking the Bend Points

Next, make a second mark at the 8-inch point on the conduit. This ensures your bends will allow the conduit to clear the obstruction effectively. Use a pencil or a sharpie to mark these points, depending on your preference. Once marked, you can place the conduit into the bender, aligning the mark with the arrow. Then, pull down to achieve a 30-degree bend. Make sure your bends are accurate by checking for no doglegs and ensuring alignment is opposite at 180 degrees.

Executing the Bend

Aligning the Bender and Conduit

To start, ensure that your conduit is marked accurately. For a 4-inch obstruction, use a 30-degree bend with a cosine multiplier of 2. This requires an 8-inch distance. Mark the conduit at 3 inches from the starting point for your first reference. Place the mark under the bender’s arrow, ensuring the conduit is securely aligned.

Achieving the 30-Degree Angle

Once the conduit is in place, pull it down to achieve a 30-degree angle. Your goal is to keep the pipe aligned as if extending in a straight line to infinity. Check that the bender’s arrow aligns perfectly with your mark on the conduit. This precision ensures a smooth transition over the obstruction.

Checking for Alignment and Dogleg

Rotate the conduit in the bender, aiming for a perfect 180-degree opposition to prevent any doglegging. Sight down the length of the conduit to confirm that it remains straight and unwarped. This assessment is crucial to confirm the absence of misalignments that could affect the structural integrity. The final check should reveal a flawless offset, free from any unwelcome gaps.

Finishing the Offset

Inspecting the Final Obstruction Clearance

When you've completed the initial bends, it's crucial to ensure that the obstruction is properly cleared. Take your measuring tape and check the distance from the starting point to the top of the obstruction. Your goal is to have the offset precisely clear the obstruction without any gap. A quick measurement should verify that you're at about four inches, allowing a small margin for adjustment if needed. If there's any deviation, make minor corrections to ensure a snug fit over the obstruction.

Assessing the Fit and Precision

Once you have confirmed the clearance, evaluate the overall fit and precision of your bends. Carefully sight down the length of the conduit to check for any misalignments, commonly referred to as "doglegs." Ensure the pipe segments are aligned at a perfect 180 degrees. To do this, flip the pipe around and make any necessary adjustments. Double-check by placing the conduit over the obstruction, confirming that there are no gaps underneath and that it sits leveled. This process ensures that your offset not only works but also stands out for its accuracy and craftsmanship.

These steps guarantee that you've achieved a precise and effective offset, which is crucial for clean and professional conduit work.

Additional Tips and Practices

Advising on Bend Degree Limitations

When working with conduit and needing to clear obstructions, it's important to remember the limitations on bend degrees. The general guideline is to avoid exceeding 360 degrees of bends in a conduit run. To maintain efficiency, a common practice is to use a 30-degree bend, as it's typically sufficient for most situations. In some cases, a 45-degree or even 60-degree bend might be necessary, but always be aware of cumulative bend degrees.

Recommending Pull Points

Including pull points can be crucial in conduit runs that require multiple bends. If your total bend exceeds 270 degrees, it's advisable to incorporate a pull point. With each bend that you add, the difficulty of pulling wire through the conduit increases, so planning for strategic pull points can greatly improve ease of installation and future maintenance. This practice ensures that your wire installation remains manageable and efficient.

Conclusion and Further Resources

Achieving precise conduit bending is simpler when using a methodical approach. Starting with a reliable tape measure, calculating obstruction height, and applying the correct bending angle ensures accuracy. For a 4-inch obstruction, the commonly used 30-degree bend involves multiplying the obstruction height by 2, resulting in 8 inches.

  • Materials Needed:

    1. Tape measure
    2. Bender
    3. Pencil or Sharpie
  • Steps to Follow:

    1. Measure the obstruction height.
    2. Consult the cosine chart for the appropriate multiplier.
    3. Calculate the needed offset by multiplying the obstruction height.
    4. Mark the pipe and bend carefully.
