Key Takeaways
- US split-phase power systems utilize both 120V and 240V, with safety as a key advantage.
- Circuit breakers are designed to protect wall wiring, not to prevent electric shocks or safeguard appliances.
- Mismatch between wire gauge and current capacity in extension cords and power strips can pose serious risks.
The US Electrical System Overview
The electrical system in the US utilizes split-phase power which allows for dual voltage levels. Most residential circuits operate at 120V, while high-power devices like dryers and stoves use the full 240V potential on dedicated circuits. Safety is a significant benefit of this arrangement.
Electrical Safety Features
- Tamper-Resistant Receptacles: Required in new construction to prevent accidental shocks.
- Circuit Breakers: Serve to protect wall conductors only, not devices or individuals.
- Arc-Fault Circuit Interrupters (AFCIs): Mandated by code for newer installations, they help prevent electrical fires.
- Ground-Fault Circuit Interrupters (GFCIs): Infrequently used in breakers; typically placed at receptacles in wet areas for shock protection.
Circuit Capacity
- A 15 amp 120V circuit can safely handle up to 1,875 watts, but for continuous loads, only 80% of that is recommended.
- Overloading a circuit with multiple appliances can cause overheating in the wiring, posing a fire risk.
Wiring and Circuit Rating
- Wire Gauge: Capacity depends on material, cross-sectional area, and length.
- American Wire Gauge (AWG): The smaller the AWG number, the thicker the wire.
- 14 AWG: Typically used in 15A circuits.
- 12 AWG: Various for 20A circuits.
- Color Coding: White sheathing for 14 AWG, yellow for 12 AWG.
Power Strips and Extension Cords
These accessories can often handle less current than the circuit allows, and this mismatch can be dangerous since circuit breakers do not detect overloading beyond the wall wiring. Careful selection and usage are imperative to prevent potential overheating and fire hazards.
Common Misconceptions

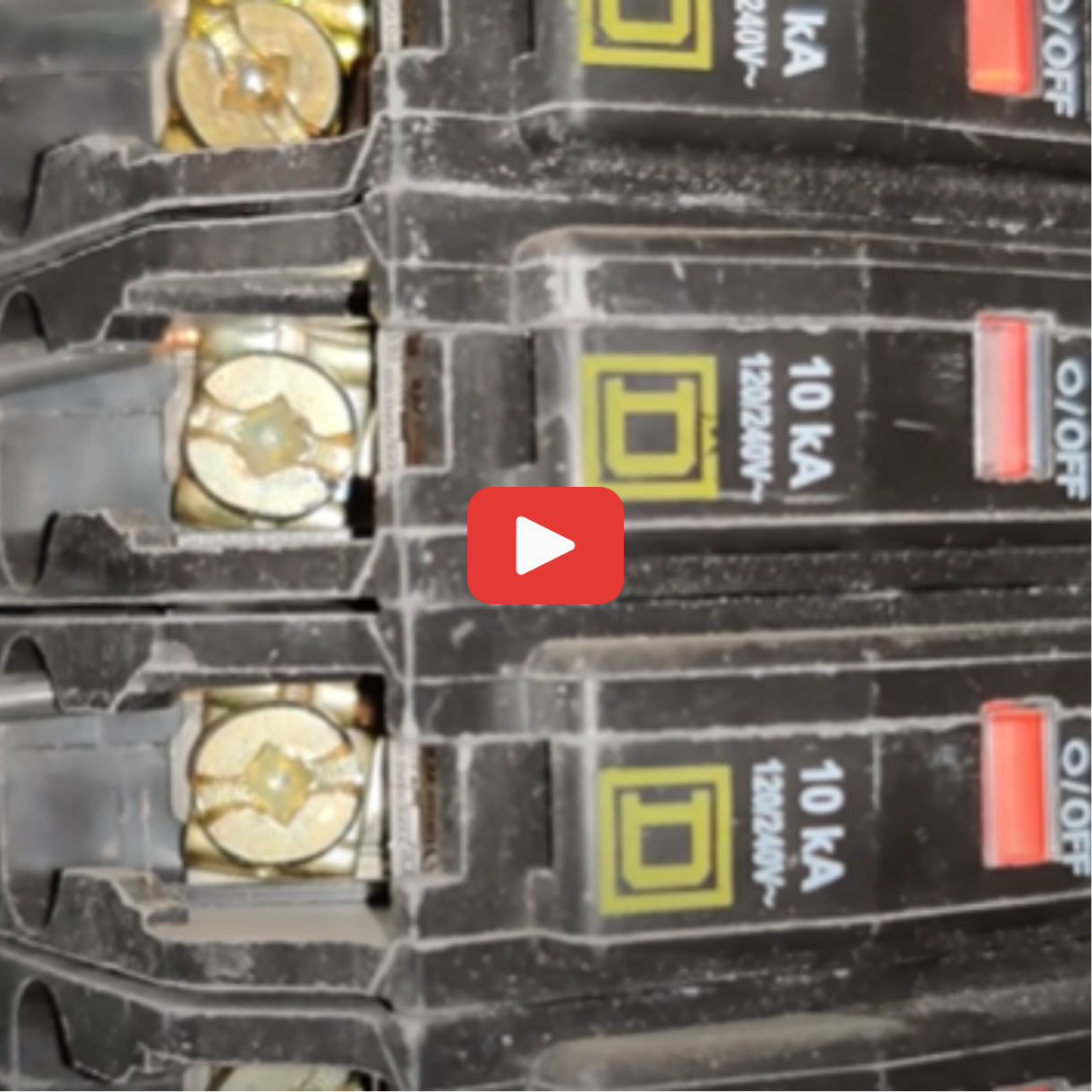

Purpose of Circuit Breakers
- Myth: Circuit breakers protect your appliances and prevent electric shocks.
- Fact: Circuit breakers protect wall conductors from overload and prevent wires from overheating, potentially causing fires.
|
Misconception |
Reality |
|
Breakers protect devices. |
Breakers' main function is to protect building wiring only. |
|
Breakers prevent shocks. |
Standard breakers do not prevent electric shocks to individuals. |
- Note: Some specialized breakers with additional features, such as arc-fault circuit interrupters and ground-fault circuit interrupters, do offer more protection than standard ones.
Limitations of Circuit Breakers
- Misconception: Circuit breakers are equipped to handle everything safety-wise once installed.
- Reality: Standard circuit breakers aren't designed to protect against issues once electricity exits the wall.
|
Limitation |
Explanation |
|
Only protects conductors inside the walls. |
They are indifferent to hazards presented once power leaves the wall. |
|
Unaware of extension cords and power strips' capacity. |
These items may not handle a circuit's capacity, posing a hazard. |
|
Regular breakers don't care if you're getting zapped. |
Their job is to keep the current through conductors within safe limits. |
- Important: Circuit breakers must match the wire gauge in your walls to ensure safety. Typical American homes have a mix of 15A and 20A circuits requiring different wire gauges.
|
Circuit Type |
Wire Gauge |
Color Code in US |
|
15A circuits |
14 gauge |
White sheathing |
|
20A circuits |
12 gauge |
Yellow sheathing |
- Note: Only the conductors within the walls are protected; any misuse of electrical devices or incorrect configurations outside the walls, such as overloaded extension cords, can still pose a significant risk.
Electrical Safety Devices
Arc-Fault Circuit Interrupters
Arc-Fault Circuit Interrupters, or AFCIs, are advanced circuit breakers designed to detect and interrupt electrical arcs. Unlike standard breakers, which only protect against overloads, AFCIs provide enhanced protection from many types of electrical fires that result from arc faults in home electrical wiring.
Key Features of AFCIs:
- Automatically shut off power when an unwanted electrical arc is detected.
- Help prevent electrical fires by interrupting current flow.
- Mandated by code in recent years for enhanced safety.
Comparison to Standard Circuit Breakers:
|
Feature |
Standard Breaker |
AFCI |
|
Overload Protection |
Yes |
Yes |
|
Arc-Fault Detection |
No |
Yes |
|
Prevention of Electrical Fires |
Limited |
Improved with arc detection |
|
Code Requirement |
Older Standards |
Recent Mandates |
Residual Current and Ground-Fault Circuit Interrupters
Residual Current Devices (RCDs), also known in the U.S. as Ground-Fault Circuit Interrupters (GFCIs), are designed to protect against electric shock and electrical fires that can result from ground faults. These safety devices are crucial in areas where there is a risk of electrical components coming into contact with water.
Where GFCIs are Commonly Used:
- Bathrooms
- Kitchens
- Outdoor receptacles
- Other wet environments
Operation of GFCIs:
GFCIs monitor the current flowing in a circuit. If a difference is detected between the "live" and "neutral" wires, indicative of electrical leakage to the ground, the GFCI immediately cuts off power to the circuit.
Key Benefits of RCDs/GFCIs:
- Provide a critical defense against electrical shock.
- Commonly installed at the receptacle level for point-of-use protection.
- GFCI breakers are available but are less common than their receptacle-based counterparts.
Understanding Their Limitations:
It is important to note that while GFCIs are effective for personal protection, they do not replace the need for proper appliance use and overall electrical safety practices.
Wire Gauge and Current Capacity
When discussing wire gauge and its relation to current capacity, you must understand that a conductor's ability to carry current safely is dictated by both its material and cross-sectional area. In the context of household wiring, you generally encounter a mix of 15-amp and 20-amp circuits. As you might expect, circuits designed to handle more current require thicker wires: 20A circuits are paired with 12 gauge wire, while 15A circuits typically use 14 gauge wire.
Here's a simple breakdown:
- 15A Circuits: Typically connected with 14 gauge wire, identifiable by white sheathing
- 20A Circuits: Require 12 gauge wire, which has yellow sheathing for easy identification
In an American home, you'll find exceptions based on specific applications that may require 10 gauge wire, which is useful for circuits up to 30A, but it's important to note that beyond this, the color coding standard does not apply.
Now, let's talk about extension cords and power strips. These accessories might be designed for user convenience, but they can become potential hazards if the gauge of wire they contain can't handle the current capacity of the circuit they're plugged into. This mismatch can lead to overheating and, subsequently, fire risks, especially concerning when you realize that standard circuit breakers are not designed to protect devices or prevent electric shock—they're there to protect the conductor within your walls.
|
Wire Gauge |
Maximum Current (Amps) |
Sheathing Color |
|
14 |
15 |
White |
|
12 |
20 |
Yellow |
|
10 |
30 |
Orange |
The resistance of a wire becomes significant as its load approaches the maximum it can handle, leading to heat generation which is exacerbated at connections or splices. It's crucial to respect these limits; overloading can strain the conductors, potentially causing them to heat up and ignite surrounding materials.
It's a must to ensure that any extension cords or power strips used are rated for the circuit's capacity. All too often, the wires outside your walls—the ones in the power strips and extension cords—are not equipped to handle the same amount of current as those within, creating a silent threat since your circuit breakers do not monitor these external factors.
Remember, whenever using electrical accessories like power strips or extension cords, always check their wire gauge and ensure they can handle the current your circuit provides. It is your responsibility to prevent overload since the circuit breaker's focus is solely on the conductors in your walls, not what's connected to them.
Household Wiring Standards
Wire Gauge to Current Compatibility
Your home's circuit breakers are designed to protect the wiring encased within your walls, ensuring that too much current does not cause overheating and potential fires. The gauge of wire used dictates how much current it can safely carry. Wire gauge is represented by a smaller number for a thicker wire: for example, 14 gauge wire is thinner than 12 gauge wire. Here is a quick reference for common household wire gauges and their associated current capacities:
- 14 gauge wire is standard for 15A circuits.
- 12 gauge wire is used for 20A circuits.
- 10 gauge wire can be suitable for up to 30A circuits, dependent on length.
Typically, you'll encounter 15A and 20A circuits in your home; the latter often powers your receptacles, while the former may be reserved for lighting. Remember, continuous loads on these circuits should not exceed 80% of their rated capacity, which means:
- On a 15A circuit, continuous loads should stay below 1,200 watts.
- On a 20A circuit, the limit is approximately 1,600 watts for continuous use.
Color Coding and THHN Wiring
Your home's wiring uses THHN (Thermoplastic High Heat-resistant Nylon-coated) wiring, which is often referred to by the brand name Romex. This wiring has been color-coded for identification. Here's a guide to understanding these colors at a glance:
- White sheathing indicates 14 gauge wiring, which is suitable for up to 15A circuits.
- Yellow sheathing denotes 12 gauge wiring, appropriate for up to 20A circuits.
- Orange sheathing is for 10 gauge wiring, for circuits that can handle up to 30A.
Note that this color-coding is particular to wires of these gauges and is helpful for identifying circuit capacities quickly. However, this color scheme does not apply beyond 10 gauge wiring. Your circuit breakers are calibrated to match the capacity of these wires, protecting the internal conductors from overcurrent without concern for what happens with the electricity once it exits the wall's safety.
Be aware that much of the external equipment, such as extension cords and power strips, may not match the current capacity of your internal wiring, creating potential risks when used improperly. It is essential to use external wiring solutions that match or exceed the specifications of the corresponding internal wiring gauge to maintain an equivalent level of safety.
Extension Cords and Power Strips
Safety Concerns
You might believe that circuit breakers are designed to protect you and your devices. However, standard breakers are solely focused on preventing the building's wiring from being overloaded. They are indifferent to what occurs beyond the wall, which is particularly problematic when it comes to extension cords and power strips.
These items, while inherently not hazardous, often cannot handle the electrical capacity that your home's circuits can deliver. This mismatch can create significant risks. For example, an overloaded extension cord within your home can result in excessive heating, potentially igniting nearby flammable materials.
Key Points:
- Circuit breakers protect wall conductors, not devices or users.
- Power strips and extension cords may not match the capacity of wall circuits.
- Overloading can cause excessive heat and potential fire hazards.
Circuit Breaker Limitations:
|
Breaker Type |
Actually Protects |
|
Standard |
Building's wiring |
|
AFCI |
Against arcs |
|
GFCI |
Against ground faults |
Remember, your circuit's maximum safe load for continuous power draw is 80% of its rated capacity. If an electrical appliance or combination thereof pulls more current than the circuit can bear, it may not immediately trip the breaker but can lead to overheating and fire risks.
Comparison with UK Plug System
In contrast to the U.S. system, UK plugs incorporate a unique safety feature: built-in fuses. Each plug contains a fuse that is rated to protect the cable to which it's attached and ultimately the appliances connected. This means that even if an appliance tries to draw more current than the cable can handle, the fuse in the plug will blow before the cable overheats.
The UK Plug:
- Contains a fuse inside each plug.
- Protects the appliance and its cord.
- Prevents cable overheating by blowing the fuse before the cord can overload.
These fuses within individual plugs help prevent the potential danger you might face with extension cords or power strips in the U.S. where such protections are typically not built into the plugs themselves. In the UK system, the fuse blowing acts as a warning and a protective measure, providing an extra layer of safety that the U.S. system lacks.
