Key Takeaways
- Bonding neutrals and grounds is essential for circuit protection.
- Proper techniques ensure safety in electrical systems.
- National Electrical Code provides guidelines for correct bonding practices.
Understanding Grounding and Bonding
Definition of Grounding
Grounding refers to the intentional connection of an electrical system to the earth. In the United States, this process is known as grounding, while elsewhere it may be called earthing. The primary goal is to create a continuous path to the earth, ensuring that any excess current is safely dissipated. This connection involves the use of Earth conductors, which play a crucial role in the stability and safety of an electrical system.
Definition of Bonding
Bonding involves connecting different components to ensure they work as a single unit. For example, if multiple pieces of metal need to be connected, bonding jumpers are used. This establishes a unified metal structure where current can flow consistently. Bonding is essential for creating a return path for electrical current, allowing faults to be detected and cleared through circuit breakers. By connecting neutrals and grounds at the service, a complete circuit is formed, enabling fault current to return to the source and trip the breaker if necessary.
Importance of Bonding Neutrals and Grounds
Role in Fault Clearance
When you bond neutrals and grounds, you're ensuring that electrical systems have a reliable method for clearing faults. This bonding is pivotal for the effective operation of breakers, which are crucial for fault detection.

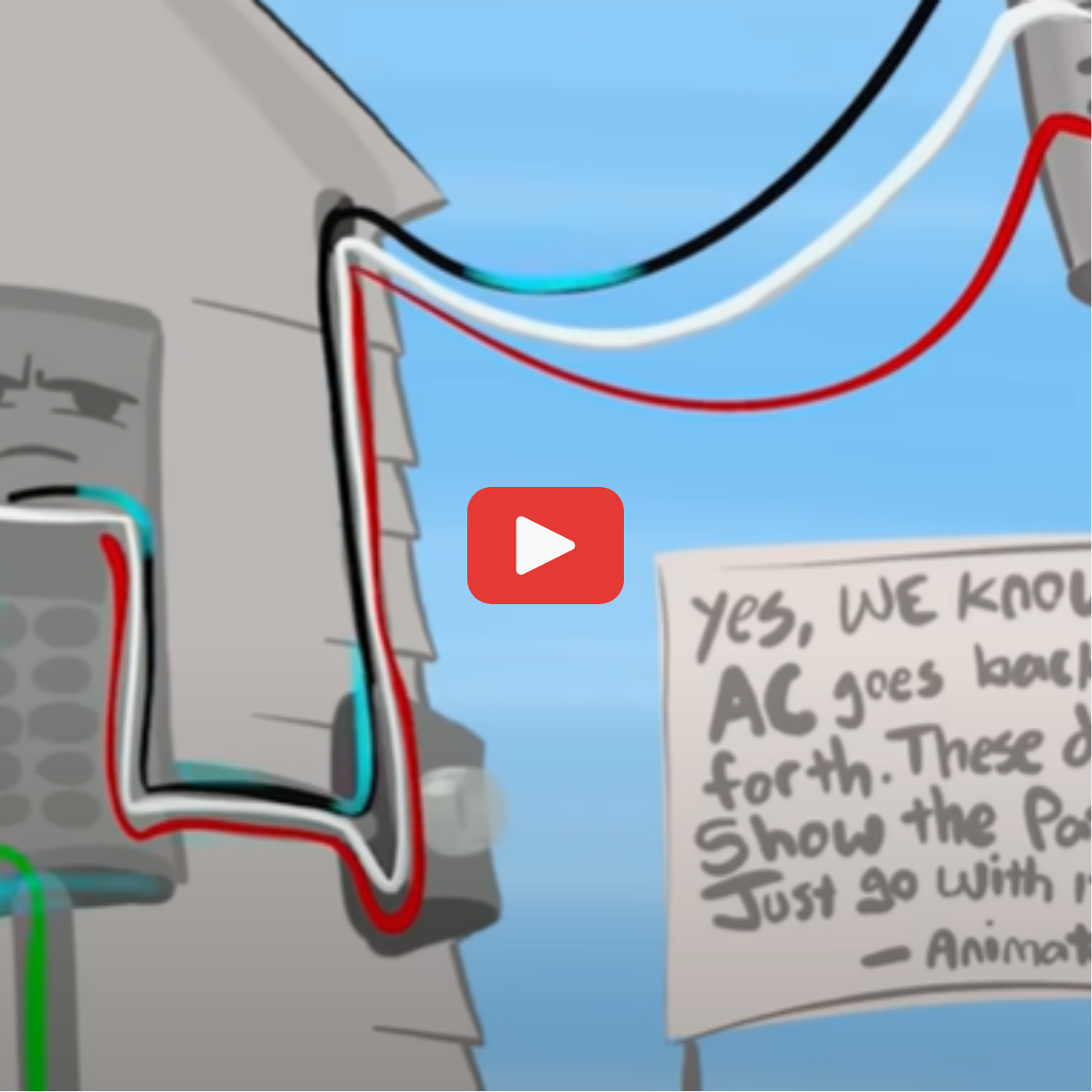

Consider a typical circuit: the current flows from a transformer via a hot conductor through a breaker at the service panel to a load, such as a light bulb. After powering the light, it returns back via the neutral. If a fault occurs, especially involving a hot conductor touching a metal object, a return path is necessary for the current to complete the circuit and trip the breaker.
Without bonding the neutrals and grounds together, such a fault would lack a return path, preventing the breaker from recognizing and responding to the problem. By bonding, a complete circuit is provided to enable the breaker to trip effectively. This system applies not just to short circuits between hot and neutral but also in ensuring that faults involving a hot and ground can be cleared, as the neutral serves as a return path.
Coding details for bonding are extensively outlined in NEC 250 Part V, including requirements for various systems such as enclosures, raceways, and separately derived systems like generators and solar panels. Always ensure that bonding is done according to code to maintain safety and system integrity.
Circuit Functionality and Breaker Operation
Complete Circuit Necessity
In order for a circuit to function correctly, it must complete a loop from the source to the load and back to the source. This entails routing current from a transformer through the breaker at the service panel, then out to a load—like a light bulb—and back. When a breaker is part of this loop, it can effectively monitor the current flow and interrupt the circuit if anomalous conditions arise.
It's crucial to bond neutrals and grounds at the service to ensure a proper return path in case of fault conditions, like a hot wire coming loose and contacting a metal fixture. Without bonding, there is no return path for the fault current, making it impossible for the breaker to detect and trip the circuit when needed. Grounding technology relies on such a complete circuit to operate effectively.
Fault Types and Clearing
Faults in an electrical system typically manifest as short circuits, which can occur between hot and neutral wires or between two hot wires. In both scenarios, the circuit can complete, allowing the breaker to trip and clear the fault. However, additional steps are necessary for faults involving hot and ground connections.
To maintain a complete circuit in these situations, bonding of the neutral and ground is required. This provides a path for the fault current to travel back to the source, passing through the breaker and enabling it to trip. Understanding the interplay between neutrals, grounds, and bonding within electrical systems is essential for fault clearing and system safety.
National Electrical Code Section 250 Overview
Types of Systems and Components to Bond
In NEC Section 250, various components must be bonded to ensure electrical safety. These include enclosures and raceways where conductors run, as well as communication systems like cable TV and internet. Additionally, metal piping such as gas and water systems need proper bonding. Ensuring these components are bonded helps prevent potential electrical hazards.
Separately Derived Systems
Separately derived systems are those that produce their own electricity, separate from the utility power. Examples include generators and solar arrays. These systems need to have their own grounding and bonding as specified in the NEC. This ensures that they remain safe and function correctly when integrated with the main electrical system.
Lightning Protection Systems
Lightning protection systems require careful bonding to the primary electrical system. This involves using ground rods and other components to ensure both systems are at the same electrical potential. Proper bonding in this context helps protect the building from lightning strikes by providing a safe path for the electrical discharge.
Proper Bonding Techniques
Bonding Grounded and Grounding Conductors
When working with electrical systems, it is crucial to bond grounded and grounding conductors effectively to ensure safety and functionality. This involves intentionally connecting the neutral and ground conductors at the service panel. This connection provides a return path for fault currents, enabling breakers to trip and clear faults.
Without this bonding, fault conditions like a hot wire touching a metal fixture can fail to trip the breaker, due to the absence of a complete return circuit. By bonding the neutral and ground, fault current travels back to the source, ensuring safe fault clearing. The National Electrical Code (NEC) sections, specifically 250 Part V, outline procedures for bonding to facilitate fault tripping.
Bonding Methods and Materials
Various methods and materials are suited for establishing effective bonds between conductors. These include using bonding jumpers, grounding screws, and straps. Some panels, such as those from Square D, provide a green bonding screw with the enclosure. This screw ensures the metal enclosure bonds to the grounding system effectively.
The choice of materials and method depends on the components and configuration of your electrical system. The NEC, especially sections like 250.102, specifies the requirements for bonding jumpers and other components. This helps ensure that both grounding and grounded conductors maintain a secure bond, providing pathways for fault current and maintaining system safety.
