Key Takeaways
- Document your circuit breakers systematically.
- Use a QR code for easy access to circuit information.
- Practical tools simplify circuit identification and documentation.
The Problem with Mislabelled Circuit Breakers
Managing mislabeled circuit breakers can escalate into a daunting task, particularly when dealing with numerous panels that lack proper documentation. This complexity intensifies if you wish to ensure your entire setup is accurately mapped and labeled. A meticulous approach involves documenting as you progress through each circuit, postponing label creation until the end of the process to avoid inconsistency.
A practical method is to maintain a detailed spreadsheet outlining what each breaker controls. This allows for comprehensive information entry, with the flexibility to refine details later. To simplify access, consider creating a QR code that links directly to the online version of the spreadsheet. Place this QR code on your panel, providing instant access via smartphone scanning whenever needed.
Accurate documentation begins with identifying which outlets and switches lose power upon turning off a breaker. Start with breakers nearest to the panel to reduce unnecessary movement. Having a helper can significantly expedite this process, especially in large or multi-story homes, by using communication tools like walkie-talkies or cell phones.
Testing outlets can be achieved by plugging in small devices like radios or lights, or using specialized testers that illuminate if power is present, eliminating the need to carry bulky items. Pay attention to any anomalies, such as outlets that retain power unexpectedly, and note these for further investigation at a later stage.
When tackling issues with completely unlabeled panels, you can reverse the process using a circuit breaker finder. This device helps identify circuits by plugging into an outlet or socket and indicating the correct breaker at the panel. Remember, preserving original labels through photographs can serve as a fallback and is crucial for maintaining a record before any alterations.
Finally, relabeling your panel should be approached thoughtfully. Options include erasing and rewriting with more permanent solutions like label makers, or replacing damaged labels entirely with new ones available from home improvement stores. This ensures clarity and reliability in your electrical setup documentation.
Initial Steps to Documenting Your Circuit Breakers
Start by ensuring every circuit breaker is labeled correctly to avoid future confusion. If there is more than one mislabeled breaker, it's crucial to document all circuits systematically. Using a labeled sheet can help track which outlets and switches each breaker controls. An online spreadsheet might be useful, allowing you to edit details and finalize labels after the documentation process.
To avoid constant relabeling, consider creating a QR code linked to your spreadsheet. Print and tape it to your panel for easy access, using your phone to view circuit details when needed. Break down the process by turning off one breaker at a time and identifying the affected areas. Begin with breakers closest to the panel to minimize travel.
Enlist a partner's help for a smoother workflow, using devices like walkie-talkies or cell phones for communication. Test outlets with a small device or a power tester to avoid moving heavy appliances. Document any unusual cases, such as outlets still powered when others aren't, as these anomalies can provide insights during later checks.
For panels with missing or jumbled labels, reverse the process. Utilize a circuit breaker finder by plugging it into an outlet and passing the detector over the panel to identify connections. This tool also works for overhead lighting with a socket adapter. Before altering any labels, capture them with your phone camera as a backup.
When relabeling, options include rewriting on existing spaces or using specialty labels. If a label is beyond repair, complete replacement might be necessary. Always document information thoroughly, as missing details can complicate future work. Consider downloading the suggested circuit breaker index for comprehensive tracking.
Creating and Using a Documentation Sheet
When organizing circuit breakers, it's beneficial to document them systematically. As you turn off one circuit breaker at a time, identify which outlets and switches lose power. Start with circuit breakers closest to the electrical panel to minimize the back-and-forth effort during testing.
Create a documentation sheet or use an online spreadsheet to record all findings. Include a detailed description of everything a circuit breaker controls. This can prevent hasty relabeling mistakes, as you can refine labels after completing the documentation.
Incorporate a QR code linking to your documentation sheet. This allows for quick access; simply scan the code with your phone to view the spreadsheet. This easy reference is particularly useful for larger homes with many circuits.
Use a circuit breaker finder to streamline the process of matching breakers to outlets or fixtures. This tool, when plugged into an outlet, helps identify the corresponding breaker by flashing or making noise, simplifying documentation. Ensure new labels are clear and up-to-date, and consider using a label maker for a clean, professional look.
Before altering or removing any labels, take a photo for reference. Having a photographic backup can save time and ensure accuracy. Experiment with various labeling systems until you find the most effective one for your setup.
Innovative Solution: QR Code Link to Your Spreadsheet
Creating a QR code that links directly to your circuit breaker spreadsheet is a smart way to streamline your home’s electrical documentation. Imagine having instant access to detailed breaker information by simply scanning a QR code with your phone. This approach saves time and reduces hassle during electrical work.
To implement this, follow these simple steps:
-
Edit and Compile Information:
- Use your spreadsheet to document all circuit breaker details.
- Note any unusual power connections or anomalies.
-
Generate a QR Code:
- Visit a QR code generator online.
- Input the URL link to your online spreadsheet.
- Download the created QR code.
-
Display and Access:
- Print the QR code.
- Tape it to your circuit breaker panel for easy scanning.
Having this digital reference ensures you know the exact breaker for any outlet or light fixture, avoiding confusion. Whether updating panel labels or identifying power sources, this efficient system makes electrical tasks more manageable.
Step-by-Step Guide for Circuit Identification
Start by turning off one circuit breaker at a time. Head to each room and test the outlets and fixtures to identify which no longer have power. Utilize a partner or helper who can report back on which devices are off, using communication tools like cell phones or walkie-talkies for efficiency. This method is particularly useful in larger homes or multistory buildings.
Document each circuit by noting which rooms and devices lose power. Important: Record any anomalies, such as an outlet that remains powered when its circuit is believed to be off. After initial documentation, revisit these anomalies and turn off each breaker individually until all irregular power sources are identified.
For outlets, use a voltage tester that lights up when power is present, making it more convenient than lugging around a lamp. When examining light fixtures, consider a socket adapter paired with a circuit breaker finder. This device flashes or makes noise when it locates the correct breaker for the connected fixture.
Before altering any labels, take a photo using your phone. Maintain thorough documentation to avoid losing critical details. If relabeling is needed, you can update existing pencil marks, use adhesive labels, or employ a label maker for a clean finish. For deteriorated labels, it's best to start fresh with new materials.
For advanced tracking, consider creating an online spreadsheet linked via a QR code on your panel. This digital method allows you to update and access circuit details effortlessly.
Utilizing Helpers and Communication Tools
When managing the complex task of documenting circuit breakers in your home, using helpers and communication tools can streamline the process. A strategic approach involves working with a partner who can help with identifying powerless outlets and switches as you turn off each breaker. Effective communication can be achieved with cell phones or walkie-talkies, especially in larger homes or those with multiple floors.
To test outlets, devices like testers (which light up when there's power) are useful. Alternatively, for outlets, you can plug in a radio or a light. This reduces the hassle of carrying around larger items, like a floor lamp. For checking circuit breakers associated with lights, try a socket adapter and a tester, which can identify the correct breaker by flashing or making a noise.
To keep track of your findings, consider using an online spreadsheet. This allows for comprehensive documentation, which can later be accessed via a QR code taped to your panel. This means you can easily pull up your documentation using your phone and quickly locate which breaker to turn off for any future work.
Don't forget to take pictures of your current panel labels before making changes. This small step saves you from potential regret over lost information. After documenting, you can relabel the panel using options like a label maker or specialty labels. Choices here depend on whether you need to overwrite, remove, or start fresh with clear and durable labels. These resources can usually be found at home improvement stores or online.
Testing Outlets and Switches
When verifying that outlets and switches correspond to the right circuit breakers, you can follow a systematic approach. Begin by turning off each circuit breaker one at a time. After switching off a breaker, check which outlets and switches have lost power. You'll find it helpful to start with the circuit breakers closest to the electrical panel, minimizing back-and-forth trips. As you move through each circuit, keep track of any unusual patterns, like a room where most outlets lose power except one. Note these anomalies for later review.
For outlets, plug in a device, such as a radio or lamp. Additionally, a tester can be extremely useful. When powered, these devices light up, offering a quick indication of power status. Testing light switches is simple: toggle them to see if they operate without power. Use a buddy system to aid communication when dealing with a larger home, possibly using walkie-talkies or cell phones for effective coordination.
To address any remaining uncertainties, return to your breaker panel and switch off each circuit breaker once again, one at a time. This method helps you map out the circuits that feed power to unexplained powered outlets or switches. Using a circuit breaker finder is another option. Connect the device to an outlet and pass its companion unit over breakers until it signals a match.
For ceiling fixtures, use a socket adapter with your tester. Insert the connected tester into the fixture to identify the circuit breaker. This method is beneficial for fixed lighting opposed to portable lamps, ensuring accurate documentation.
Before altering any labels, photograph them for a backup record. You can update panel labels directly if they're in pencil. For pen-written labels, apply adhesive remover or overlay new labels as necessary. Specialty labels from hardware stores or online can replace damaged ones, ensuring your documentation stays intact.
Noting Anomalies During Documentation
When you're documenting your electrical circuits, keeping track of anomalies is key. For instance, if you notice that a room loses power, except for one outlet, make a note of that. Identifying these irregularities can help refine your documentation process.
Utilize tools effectively to enhance this task. Consider starting near your electrical panel to reduce unnecessary back-and-forth trips. Having a partner can also make this work much easier. Communicate using walkie-talkies or cell phones to efficiently identify and note anomalies in larger homes.
Use a testing tool for outlets and lights. A circuit breaker finder can greatly simplify identifying breakers for specific outlets or fixtures. For ceiling lights, use a socket adapter linked to your tester to find which breaker controls each fixture. Before editing any labels, ensure you photograph them for record-keeping. Having a documented history is always better than lacking crucial information when you need it.
Additional Tips for Identifying Troublesome Circuits
To efficiently identify troublesome circuits, begin by documenting your circuit breakers as you test each one. Avoid changing labels immediately; instead, save this for the end to prevent confusion. Utilize a spreadsheet, which can be either a printed sheet or an online version, to document what each breaker connects to. This method allows for detailed notes during the process without worrying about fitting information on a small label.
Consider creating a QR code that links to your online documentation. Print and attach this QR code to your panel. This way, you simply scan it with your phone to access detailed information about each circuit during any future electrical work.
When identifying circuits, start near the electrical panel. Turn off one breaker at a time and check which outlets and switches lose power. Using a helper can speed up the process—a phone or walkie-talkies can facilitate communication across large spaces.
For testing outlets, plug in a small device like a radio or light to see if power is present. Utilizing a circuit tester can also help efficiently determine live circuits. If you encounter any anomalies, such as an outlet with unexpected power, document it for later investigation.
Consider using a circuit breaker finder to reverse the process if labels are missing or unclear. This involves plugging one part of the finder into an outlet and scanning the panel for the corresponding circuit breaker. This tool can also be used on ceiling lights with a socket adapter.
Before removing or changing labels, take a picture with your phone to preserve the original information. If labels are written in pencil, you can update them with a pen or use a label maker. For pen-written or damaged labels, consider replacing them entirely using adhesive removers or overlaying specialty labels.
Using a Circuit Breaker Finder

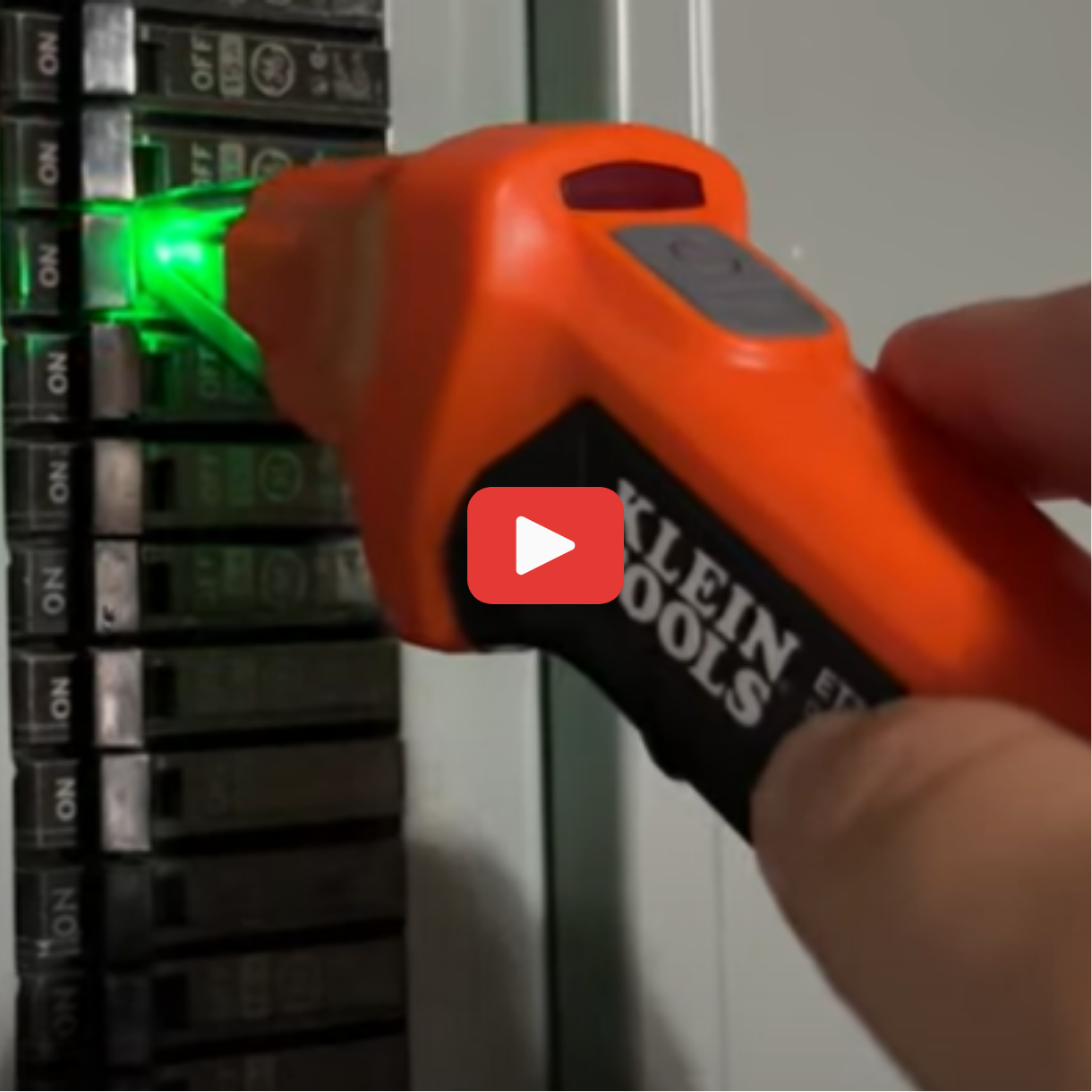

When dealing with circuit breakers that are mislabeled or not labeled at all, a circuit breaker finder is an efficient tool to simplify the process. Start by plugging one end of the circuit breaker finder into the outlet. Then, with the other end, scan the circuit breakers in your panel. The device will flash and make noises to indicate the correct breaker.
For lights, use a socket adapter with a cheater plug. Screw these into a light socket, and plug your tester into the setup. This lets you identify the breaker connected to ceiling lights without dismantling fixtures.
Keep your documentation process smooth by taking photos of existing labels before making changes. If you need to update labels, consider using a pen or a label maker. For damaged labels, use adhesive remover to clear them and apply new specialized labels.
Managing circuit labels effectively involves a mix of simple tools and good documentation habits. The use of a circuit breaker finder can help make this task more straightforward, ensuring your electrical system is clearly labeled and easy to manage.
Tips for Ceiling and Fixed Lighting Identification
Start by gathering essential tools. These include a testing device, socket adapters, and cheater plugs. Use a tester to identify outlets by plugging it into the fixture to see if power is present. For ceiling lights, use a socket adapter and screw it into the light socket, then insert the tester.
Engage a partner to reduce the need for constant movement between rooms. A helper can inform you about which lights and outlets have lost power as you switch breakers off. Communication can be enhanced with cell phones or walkie-talkies, especially useful in large homes or those with multiple floors.
Keep a detailed record as you progress. When you encounter unusual situations, like a single powered outlet in a room where everything else is off, make a note. These anomalies can help pinpoint circuits that aren't straightforward.
Document findings on a spreadsheet or a physical sheet. Optionally, create a QR code that links to this document for easy future reference. Attach the QR code to your circuit panel for quick access. Before any changes to labels, take a photo for reference. Use a label maker for clear, updated labels on your breaker panel when ready.
Best Practices for Documentation Preservation
When it comes to maintaining your home's electrical system, a systematic approach is crucial for effective documentation preservation. Start by documenting each circuit breaker as you test them. Utilize a spreadsheet to keep track of which outlets and switches are connected to specific breakers. This reduces the chance of confusion and ensures information is organized.
To streamline your process, consider using a QR code. Create a digital spreadsheet, link it to a QR code, and attach this code to your breaker panel. This way, you can easily access the spreadsheet by scanning the QR code with your smartphone.
Here are some tips to help you as you chart your circuit breakers:
- Test methodically: Begin with breakers closest to the electrical panel and gradually move outward.
- Use tools: Employ a simple tester or a socket adapter to verify outlets and light connections.
- Partner up: Consider doing this with a friend or family member to assist you in identifying lost power, thus speeding up the process.
- Note anomalies: Pay special attention to any unexpected power connections that defy the documented pattern.
Assess your breaker labels and consider taking photos of them before making any changes. When it's time to relabel, opt for using a label maker or specialized labels. Always prioritize clear, legible descriptions. (Remember: better to have documentation you don't need than not have it when necessary.)
For easier tracking and future-proofing your documentation, download readily available templates such as the circuit breaker index guide mentioned in the accompanying resources. This will help you keep detailed records without overcrowding physical labels.
Options for Labeling and Updating Your Panel
When dealing with labeling circuit breakers, addressing any issues promptly is crucial. If a single breaker is mislabeled, fix it immediately before starting new projects. For houses with multiple breakers, the task becomes more complex as you document and update each one.
To streamline the process, it's best to document your circuit breakers first rather than relabeling them one at a time. Use a comprehensive spreadsheet to record which areas each circuit breaker powers, and consider using an online version for easy editing.
If you wish to avoid relabeling your panel, you can use technology to your advantage. Create a QR code linking to your online spreadsheet, print it, and attach it to your panel. This simple tool allows you to access your documentation swiftly using your phone whenever electrical work is needed.
For efficient documentation, test each breaker by turning it off and checking which outlets and switches lose power. Begin with breakers nearest to your electrical panel to reduce unnecessary back-and-forth movements. Having a partner can also be beneficial; they can notify you about the changes while you document the results.
Use practical tools like a radio, light, or a specialized tester to check power status at different outlets. Test light switches by observing which lights turn off, and note any anomalies, such as outlets still powered when others in the room are not. Investigating these unusual power distributions later can help in correctly documenting each breaker.
To manage unlabeled or illegibly labeled panels, reverse the process using a circuit breaker finder. Connect one end to an outlet and sweep the breaker panel with the other until you identify which circuit the device is on. This tool works for ceiling lights as well when used with a socket adapter.
Before removing or erasing any existing labels, ensure you photograph them for a backup. To relabel, either update existing ones if written in pencil or replace them using a label maker. If the label area is damaged, remove it entirely with adhesive remover or cover it with new specialty labels.
For further convenience, downloading a circuit breaker index can be valuable. When these methods are applied, updating and labeling your panel becomes a more manageable and effective task.
Final Recommendations and Resources
Accurate documentation of circuit breakers is crucial for any home electrical project. It's recommended to document your circuit breaker setup progressively rather than changing labels as you go. This approach prevents errors and ensures consistency across your electrical system.
For effective circuit tracking, consider using a spreadsheet to log detailed descriptions of what each circuit breaker controls. You can opt for an online version of this tracking sheet, which allows for easy updates and revisions. To simplify access, generate a QR code linked to your document. Print this code and place it on your electrical panel. This way, with a quick scan, you can access your circuit details anytime.
Here's a practical strategy to tackle the process:
- Turn off one breaker at a time and identify which outlets or switches lose power.
- Document each change methodically, noting any oddities like unexpected live outlets.
- Enlist assistance from a partner using tools like walkie-talkies for efficient communication, especially in larger or multistory homes.
Test outlets with a basic tool or device to avoid manual errors. For light fixtures on ceilings, use a socket adapter to connect your tester. If your existing labeling needs a refresh, many options are available. You can update existing labels with a pen, use a label maker, or replace them entirely with specialized labels if damaged.
Finally, remember to photograph any current labels before making changes. Digital backup ensures you have a reference point should you need it. For further assistance, download a free circuit breaker index through the provided link below the video, where you can also find instructions on setting up a QR code.
Conclusion
To ensure efficient management of your circuit breakers, consider maintaining a detailed record. Use a dedicated spreadsheet to document each breaker, its corresponding outlets, and any anomalies you might encounter. This can be done either digitally or in print form.
Incorporate a QR code linking back to your spreadsheet, attached visibly to your breaker panel. This simplifies future checks: a quick tap of your phone brings up the necessary data. This method saves time and reduces the likelihood of errors during any electrical maintenance or troubleshooting tasks.
When conducting a thorough check, you can ease your workload by working with a partner using tools like a circuit breaker finder. This equips you to recalibrate your panel's labels accurately and ensures that all fixtures and outlets are well-documented. Make it a habit to photograph any existing labels before removing or rewriting them.
Remember, maintaining a robust documentation system saves time and effort later, providing a reliable reference that makes handling electrical projects much simpler.
